Submerged Arc Welding Wire Em12K

Product Description:

ISO9001,CCS approved,submerged Arc Welding wire EM12K


Specifications

Submerged Welding Wire and suitable Welding Flux
1 size:2.0.mm-5.0mm
2 certif:ABS CCS NK BV GL ISO
3 free sample
4 OEM

EM12K(H08MnA) is a kind of mild steel wire for submerged arc welding. Welding together with suitable flux, the welding seam can get excellent mechanical properties.



Application:
With suitable welding flux, used to weld mild alloy steel like 09Mn2, 16Mn, 16MnCu etc submerged arc welding.



Conform with:
GB/T: H08MnA     DIN: S2
AWS: EM12K        BS: S2



Parameters:
Dimensional tolerances: 0.01-0.02mm
Quality: Class A

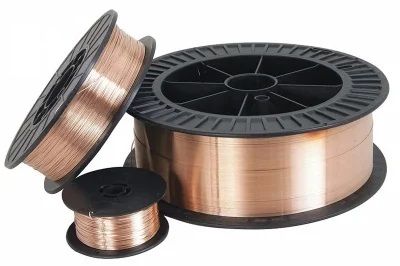

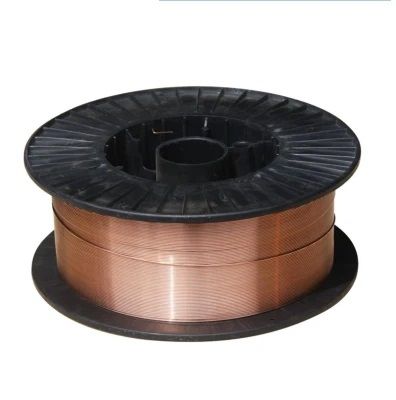

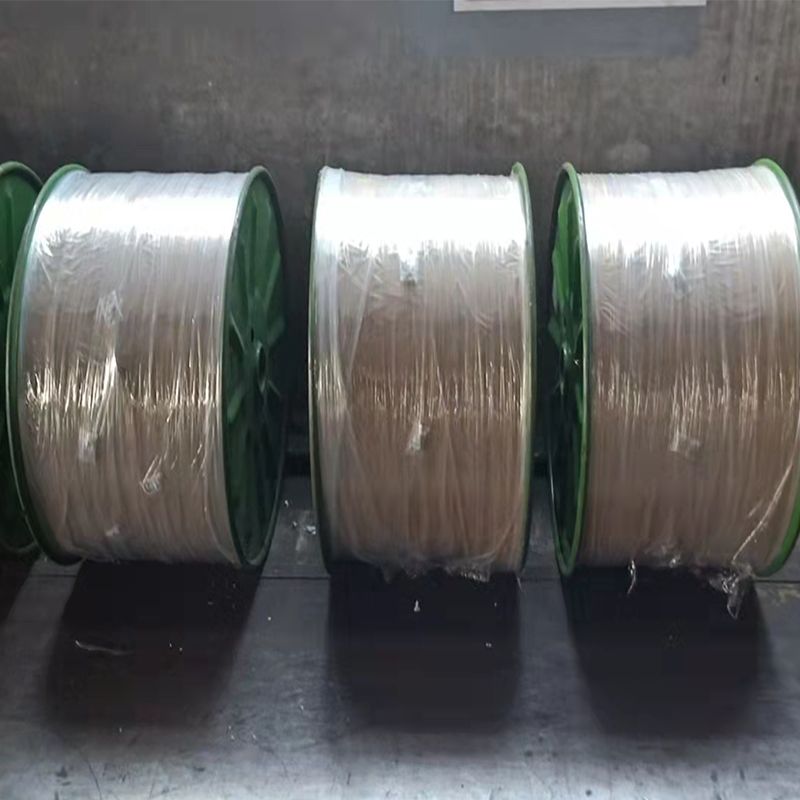

spool materials: wooden/ metal or without core
Copper width: 0.03 micrometer
Use type: mig torch

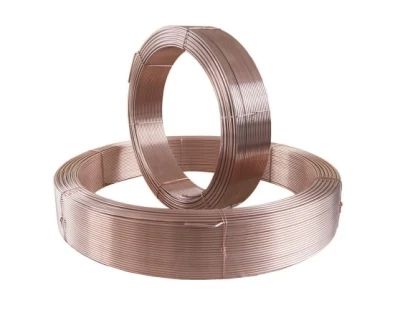

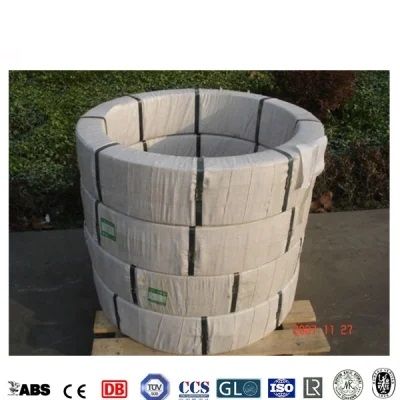

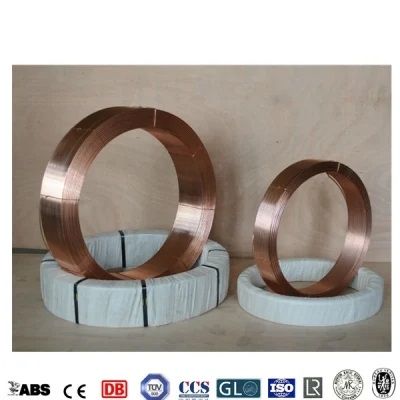

Wire Type: Coil Packaging
Size: φ1.6~5.0(mm)
Inner diameter: 300mm 620mm
Outer diameter: 400mm 820mm
Net Weight: 25kg, 250kg



Chemical composition of welding wire(%)
C: ≤0.10
Mn: 0.80~1.10
Si: ≤0.07
P: ≤0.030
S: ≤0.030
Cr: ≤0.20
Ni: ≤0.30
Cu: ≤0.20



Mechanical Properties or Deposited Metal
Yield strengthσ0.2(Mpa): ≥320
Tensile strengthσb(Mpa): 410~550
Elongationδ5(%): ≥22
AKV impact(J): ≥34(0)
